SPECIFICATIONS

Age Range: 8 to 13 Years,14 Years & up

Brand Name: Hiwonder

Camera resolution: 480P

Communication method: WiFi, Ethernet

Control method: Computer/ phone control

DOF of robotic arm: 4DOF+Gripper

Gender: Unisex

Hardware: Raspberry Pi 4B+ Raspberry Pi expansion board

Material: Metal,Metal bracket

Model Number: ArmPi mini

Place of Origin: Guangdong, China

Power: 2*18650 Lipo battery (1800mAh)

Product dimension: 208*134*309mm(length*width*height)

Scale: 1:5

Software: iOS/ Android APP

Style: Battery Operated Toy,Cartoon Toy,DIY TOY,Educational Toy,Electronic Toy,MODEL TOY

Weight: 0.7kg

Product Description

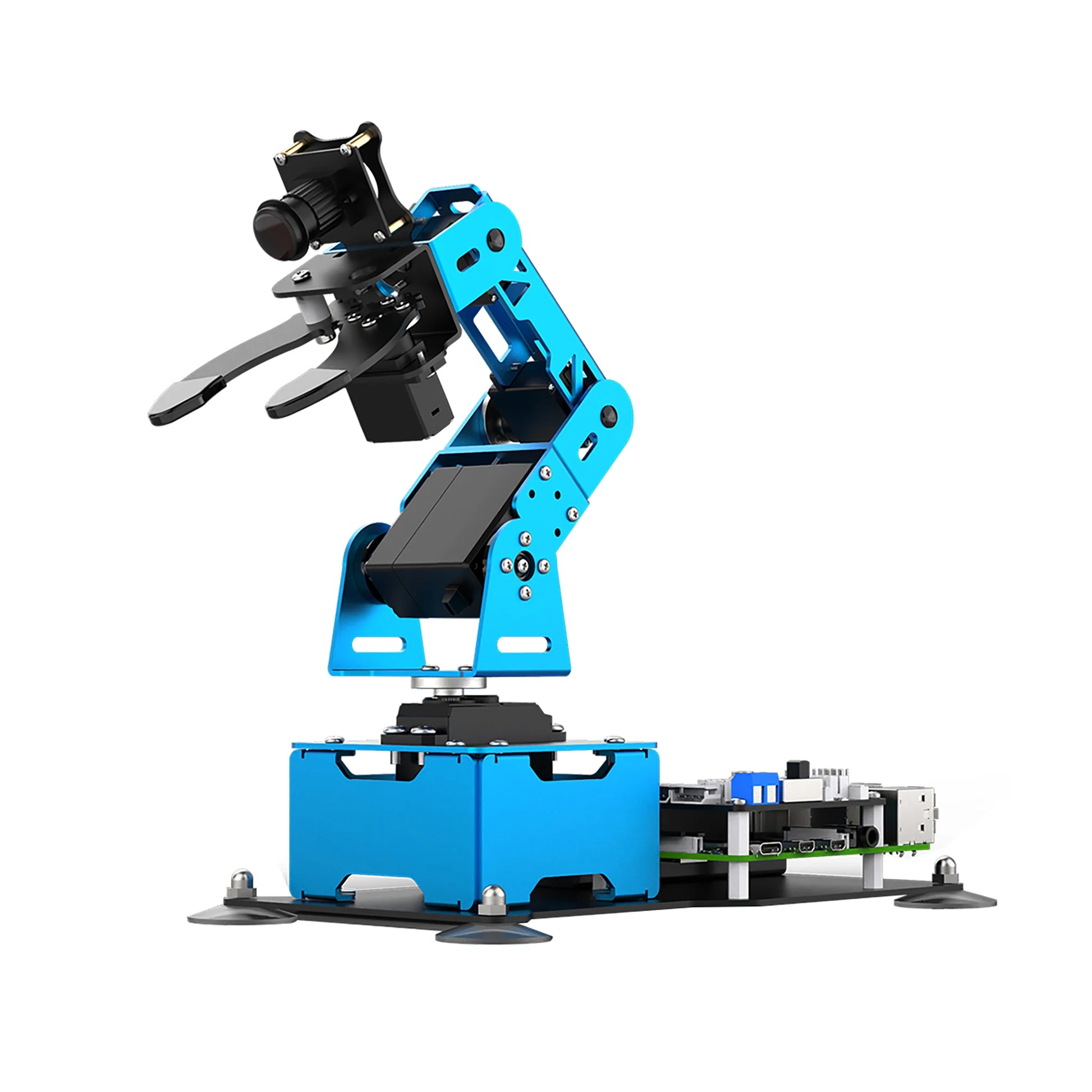

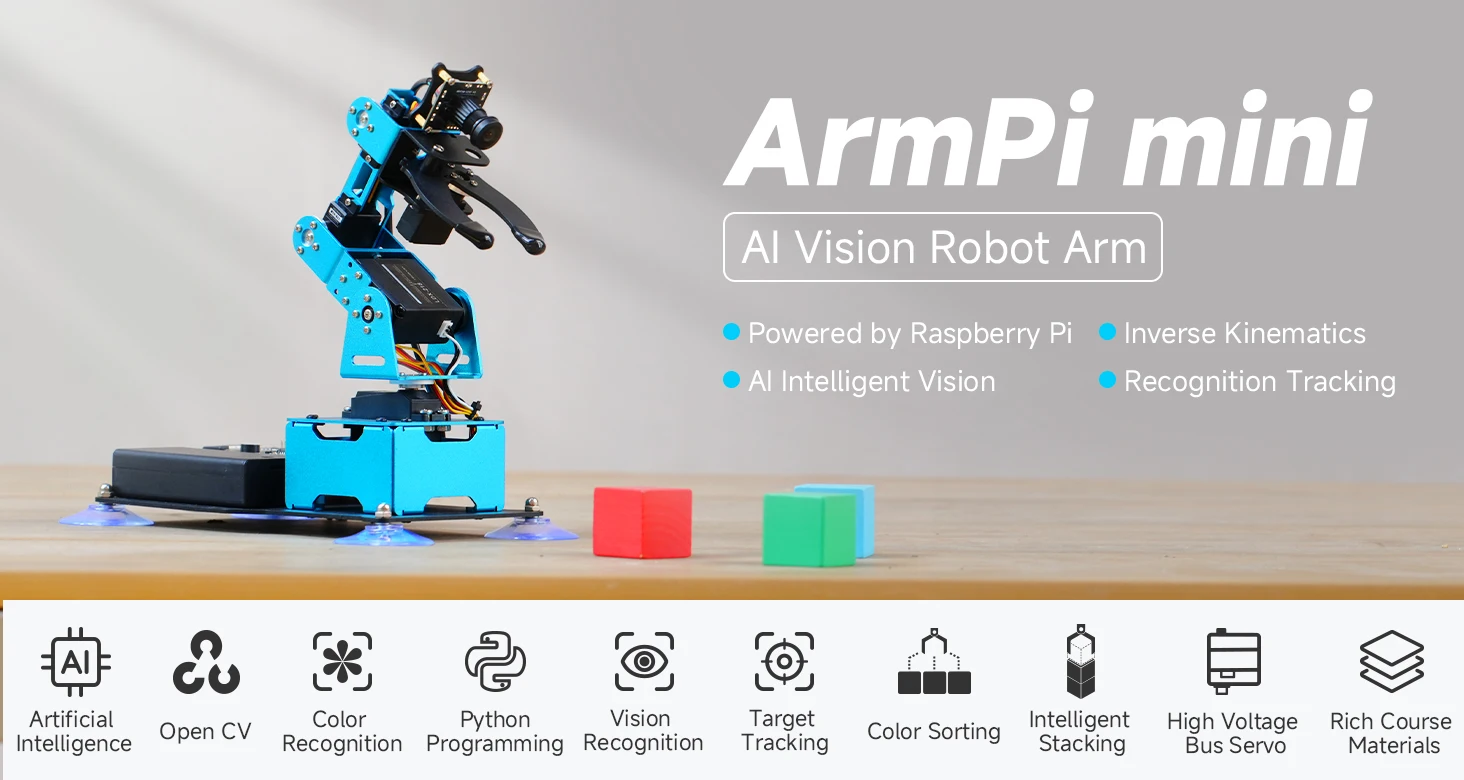

ArmPi mini is a smart vision robot arm powered by Raspberry Pi. It adopts high-performance intelligent servos and HD camera, and can be programmed in Python. With its impressive capabilities, ArmPi mini unlocks diverse AI applications, such as smart vision-guided recognition and grasping.

AI Vision Recognition,
5DOF Vision Robot Arm

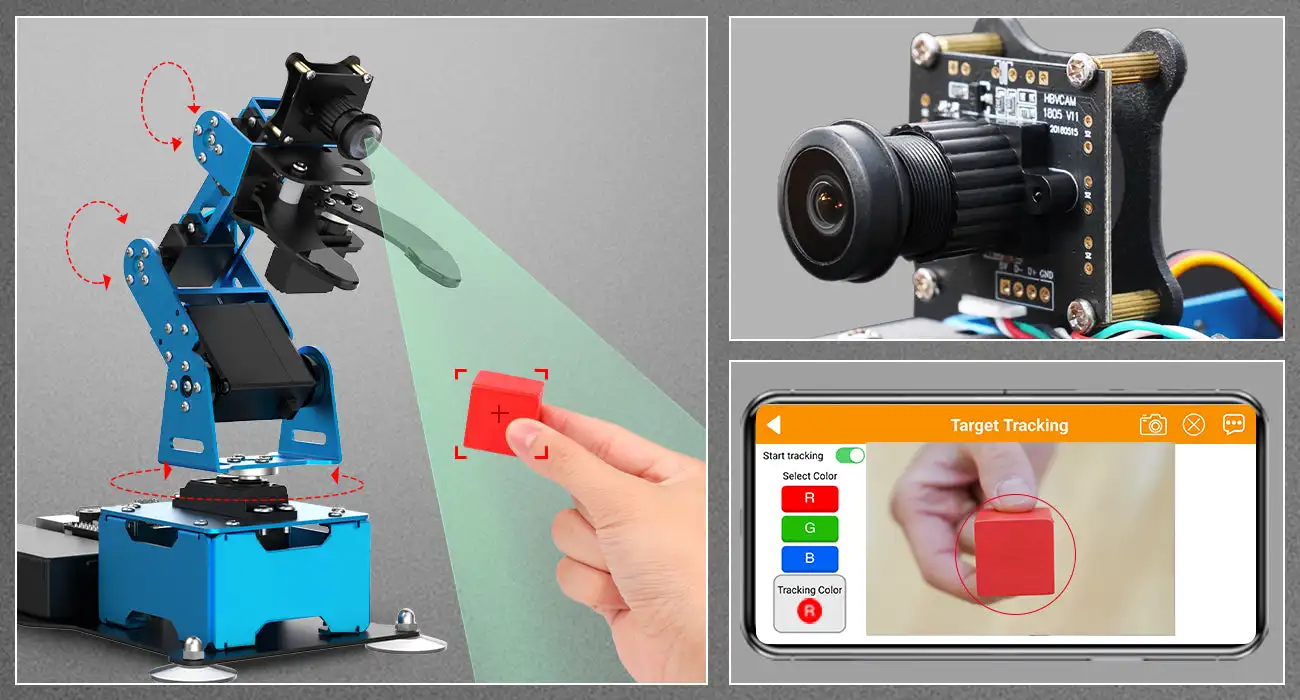

Loaded with 170° wide angle camera and processing image with OpenCV, ArmPi mini can achieve color recognition, color sorting, target tracking, and intelligent palletizing.

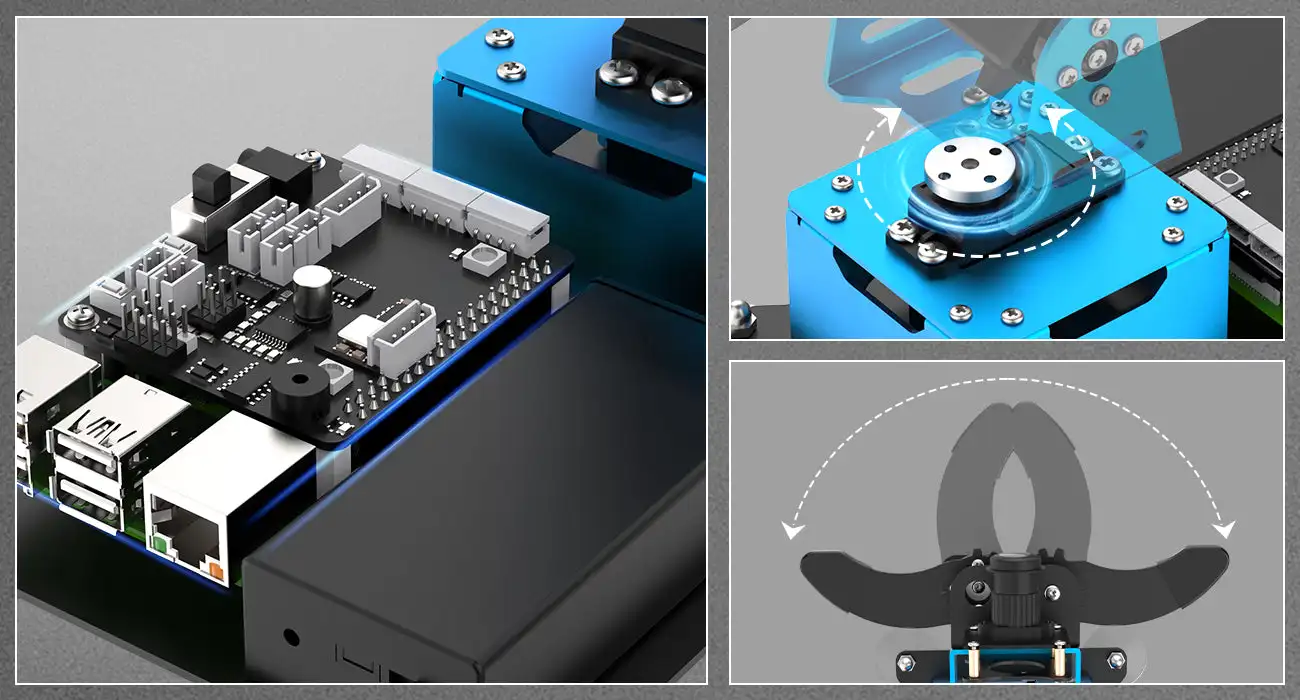

Powered by Raspberry Pi, High-quality Hardware

ArmPi mini is controlled by Raspberry Pi and is equipped with a variety of high-performance servos with strong power. The end of the robotic arm is equipped with a duralumin alloy mechanical claw.

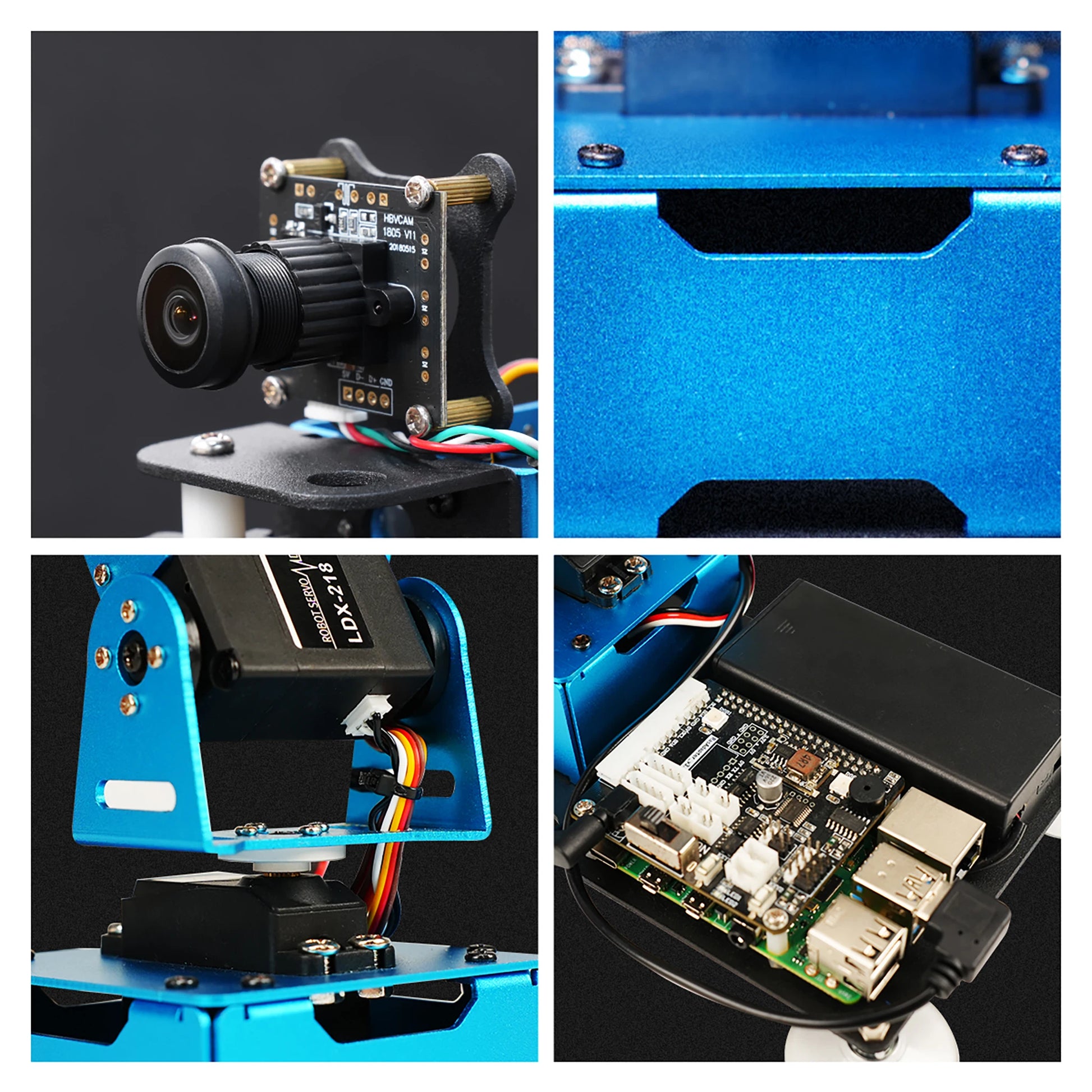

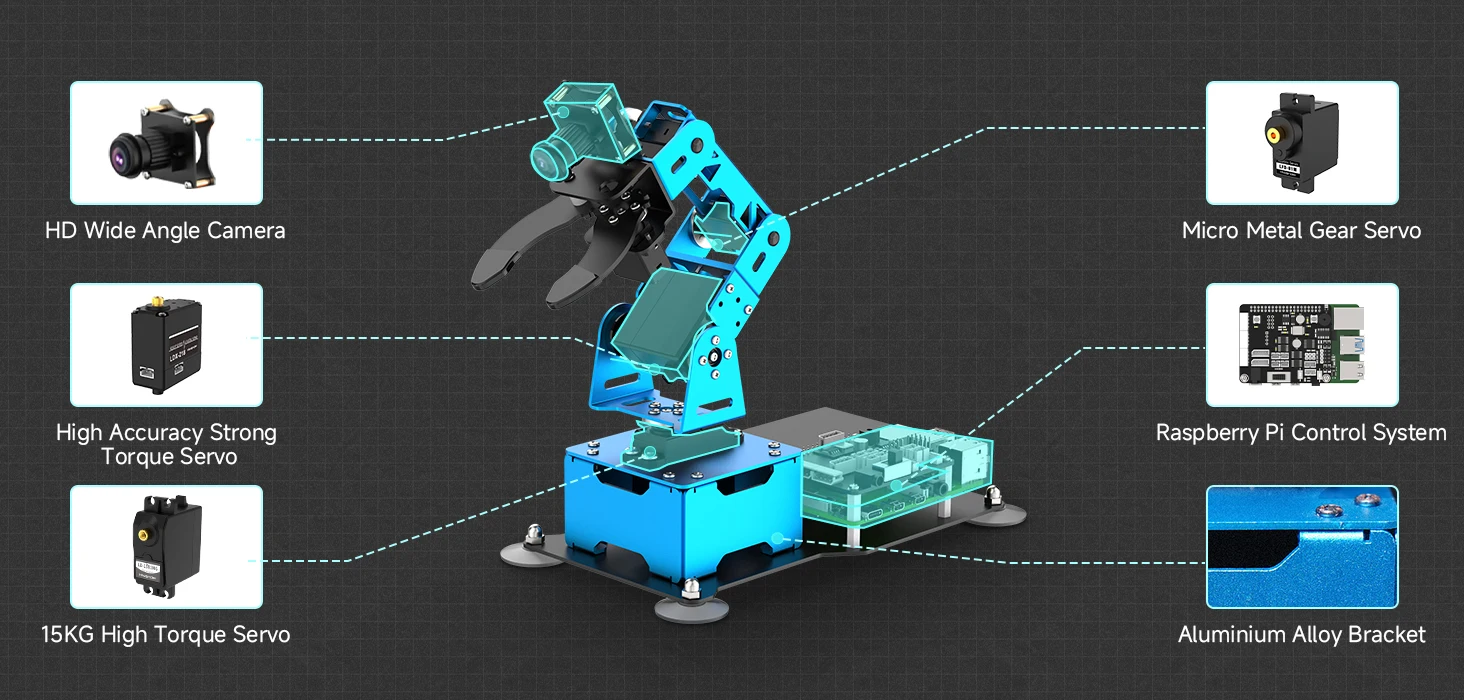

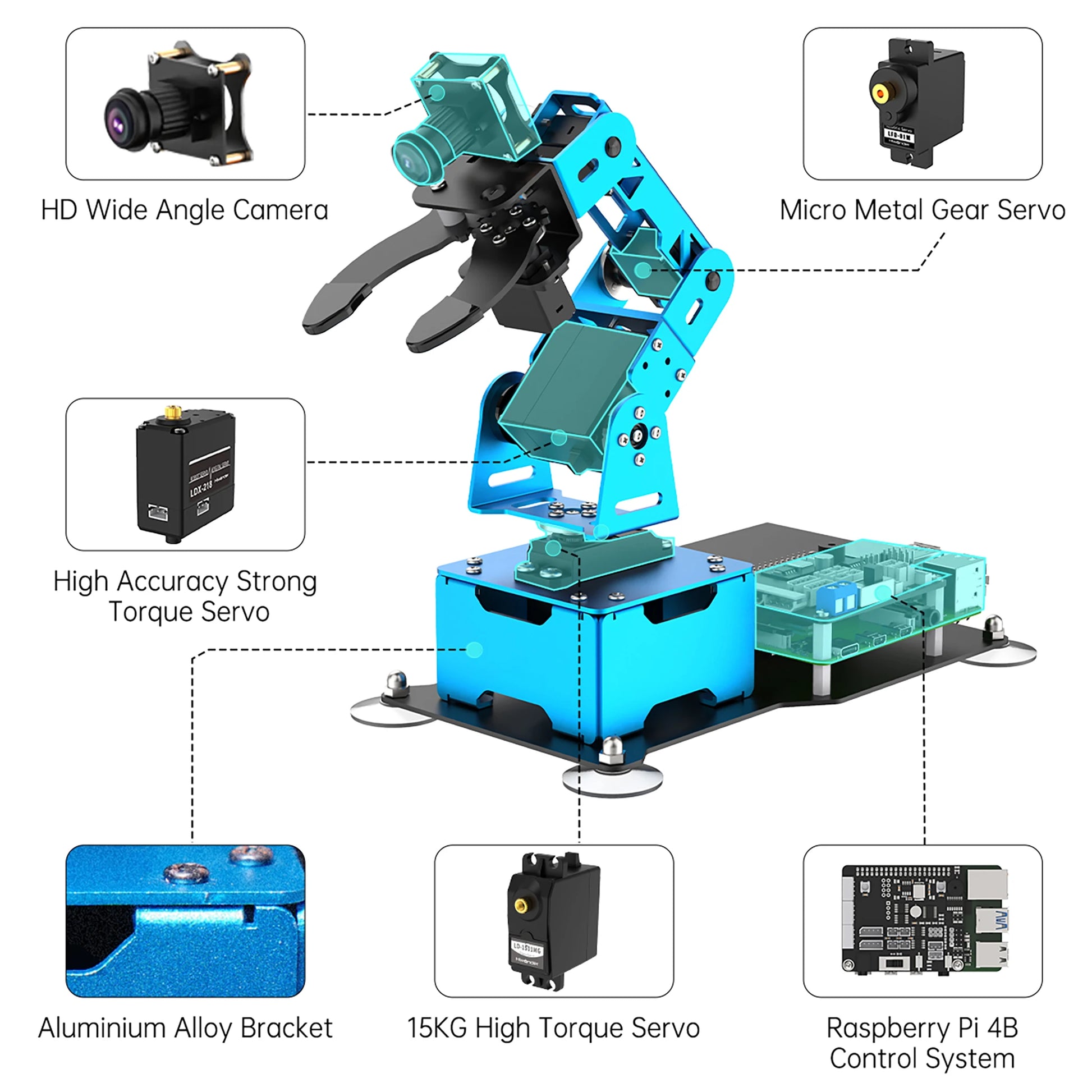

Hardware Features

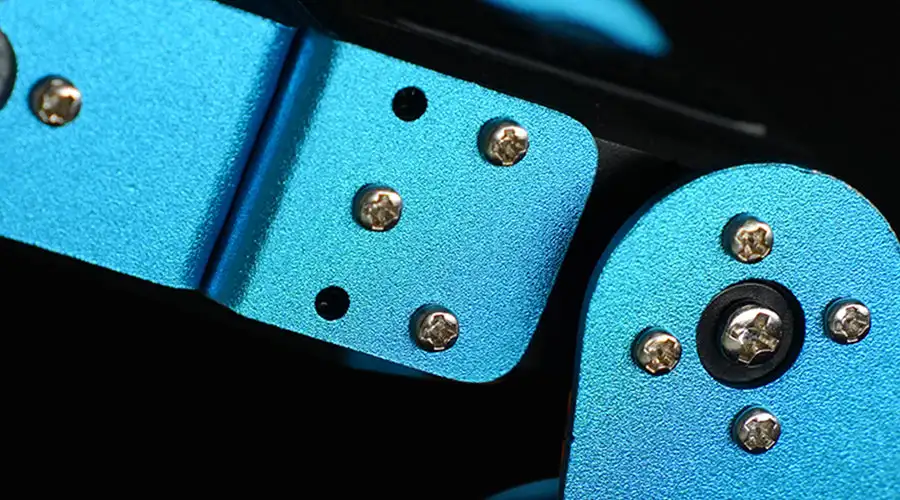

Aluminium Alloy Bracket

Robotic arm body is made of aluminium alloy featuring lightweight and high strength.

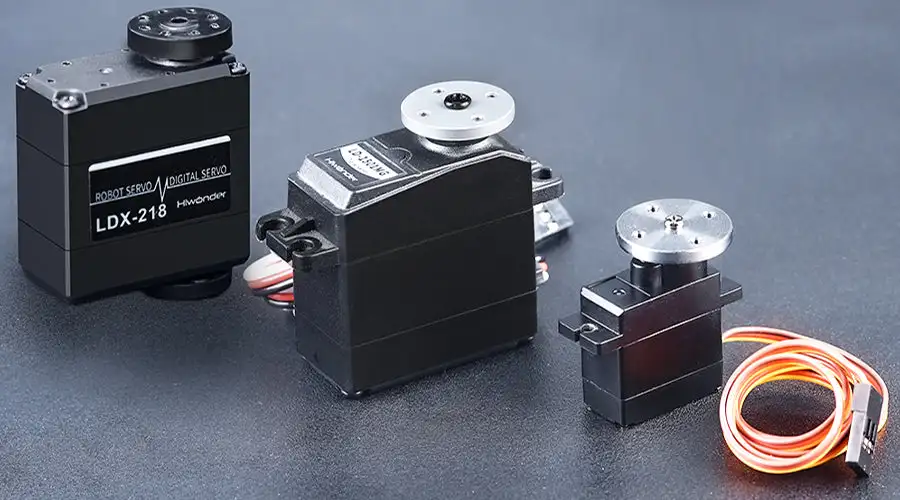

Assorted High Performance Servos

Robot base adopts full-metal high torque servo with metal servo horn which brings stronger force. And robotic arm end uses micro anti-blocking servo with high accuracy and longer service life.

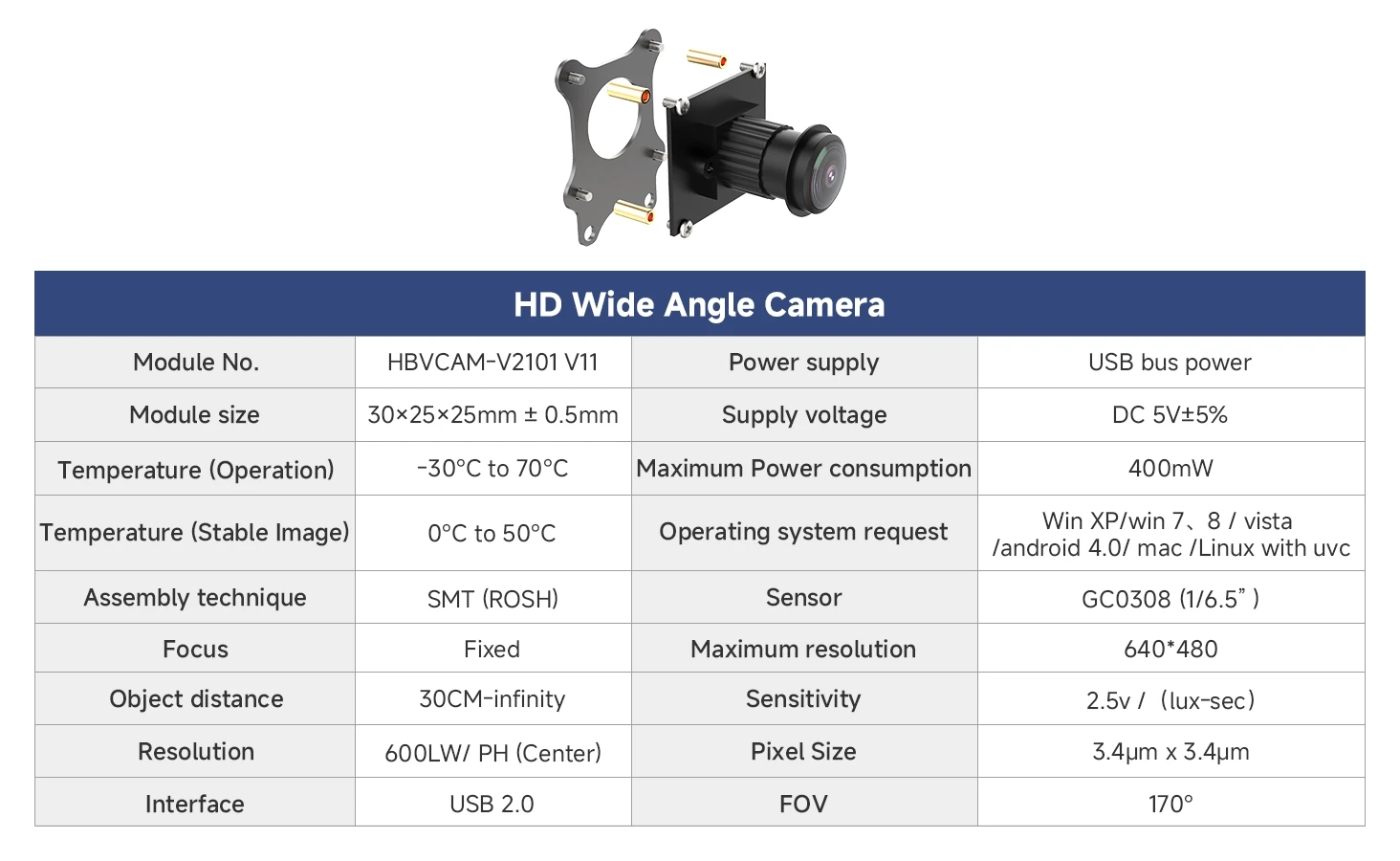

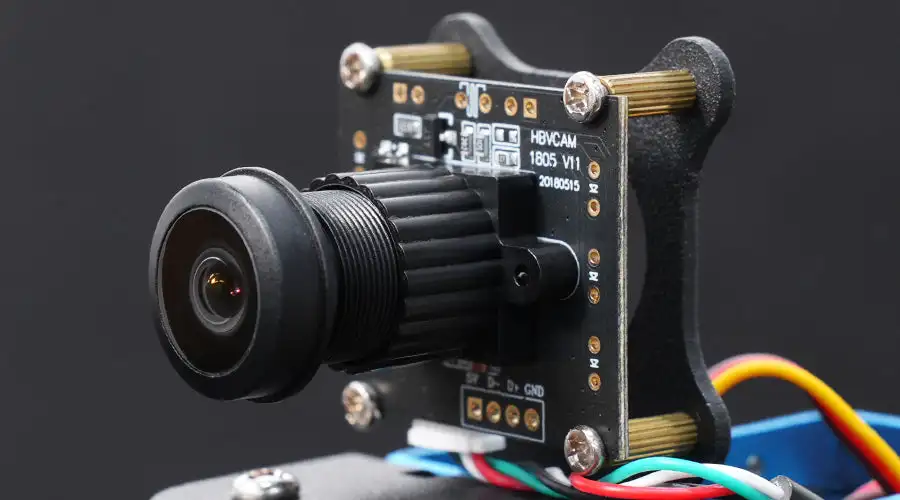

HD 120° Wide Angle Camera

Loaded with 120° wide-angle camera, ArmPi mini can look around 180°, and up and down 180°.

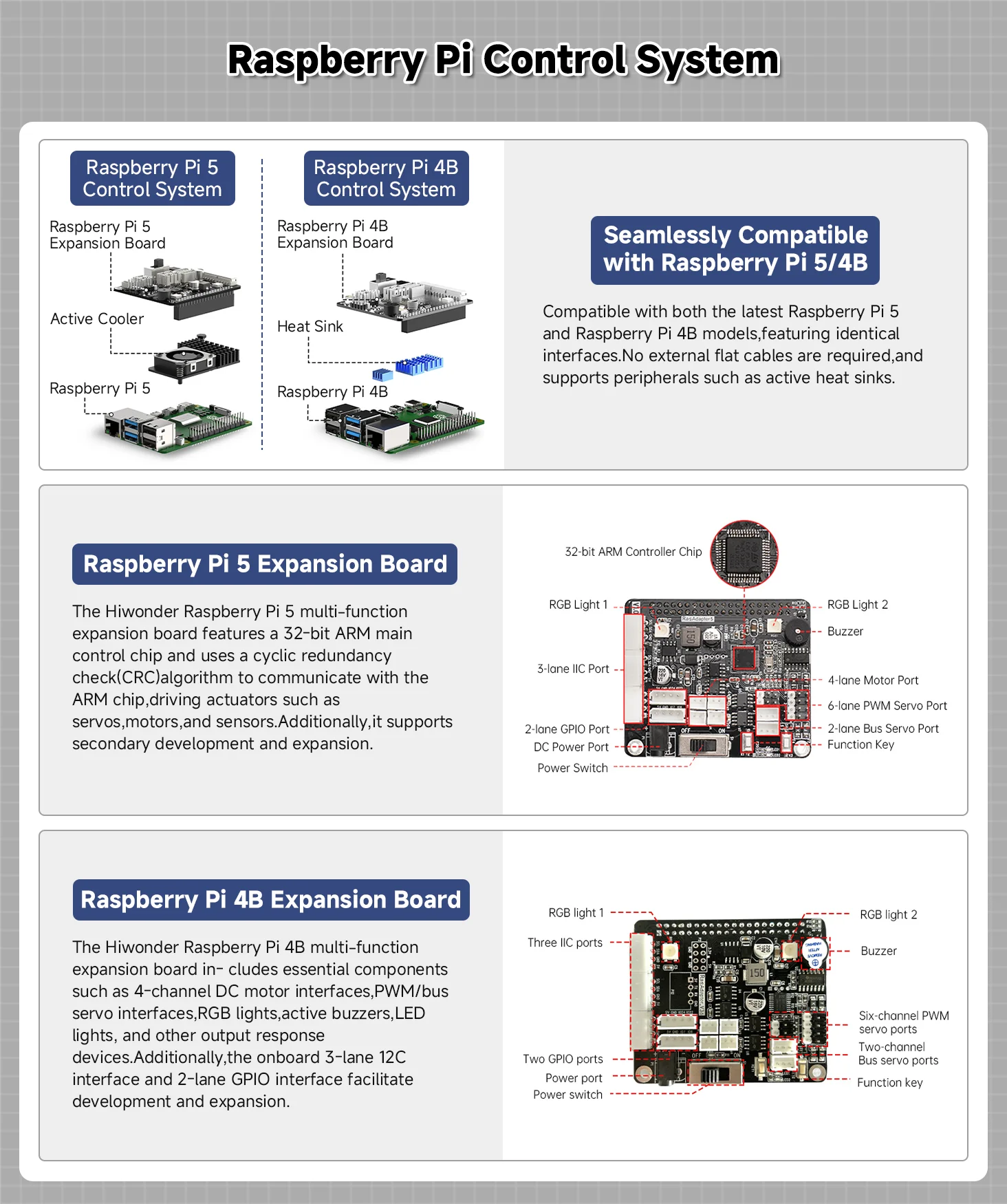

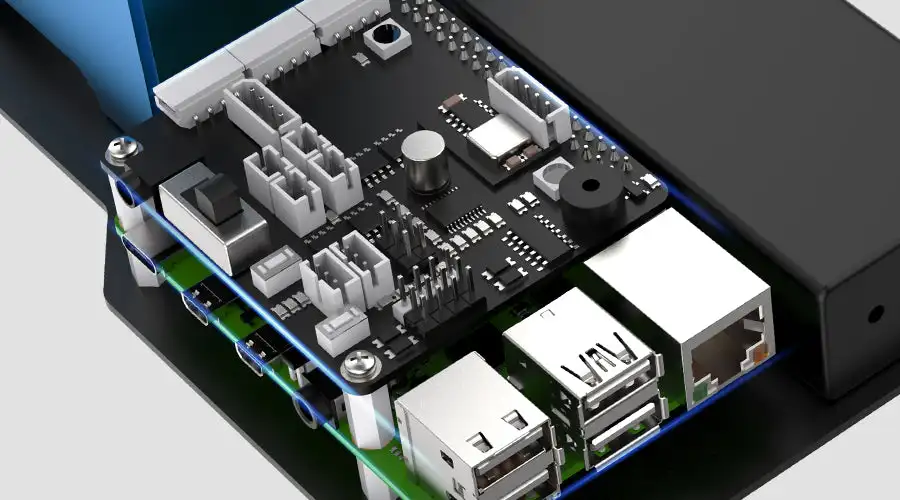

Powered by Raspberry Pi

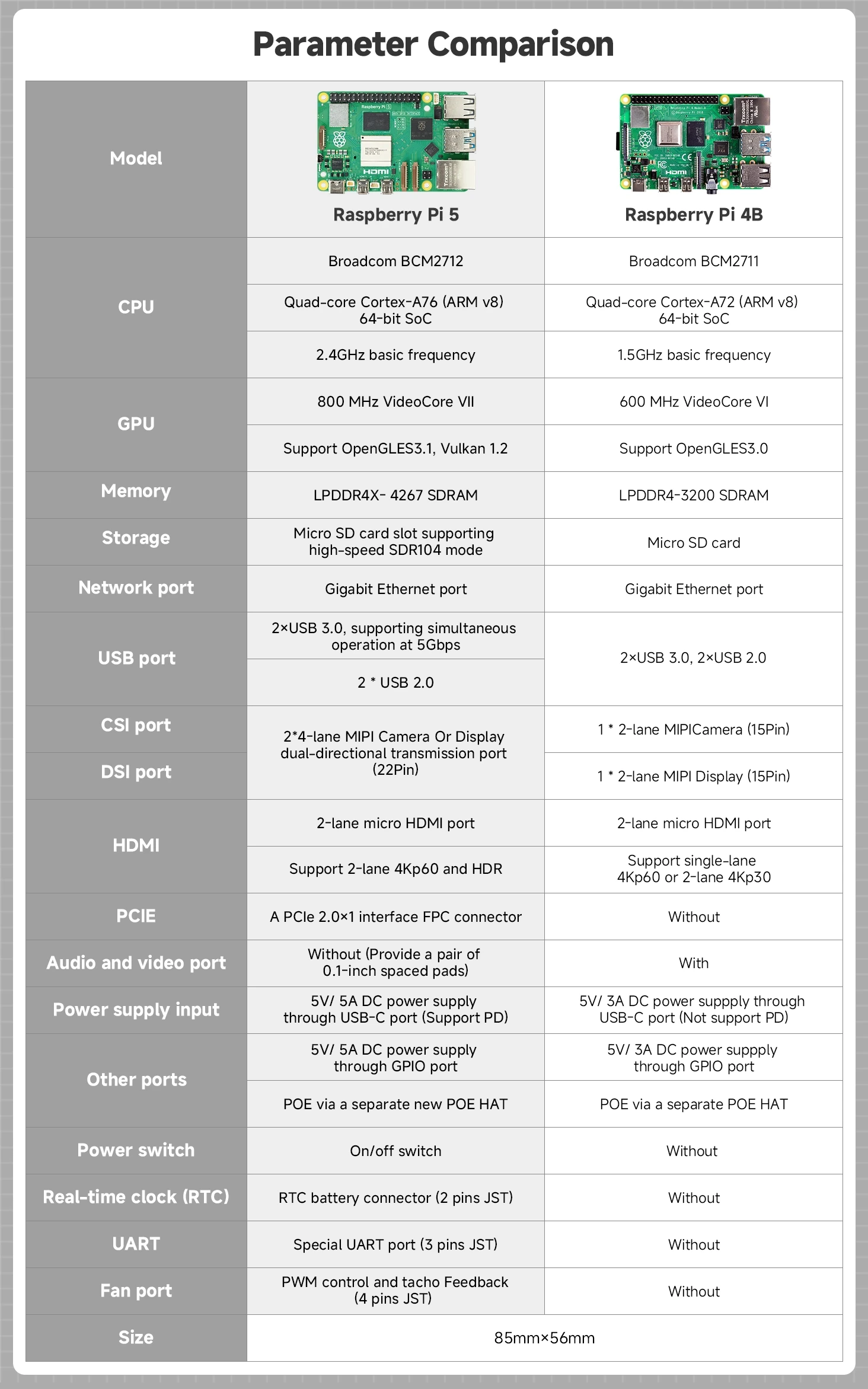

ArmPi mini powered by Raspberry Pi 5 or 4B controller allowing you to embark on motion control, machine vision, and OpenCV projects.


Inverse kinematics, First Person View

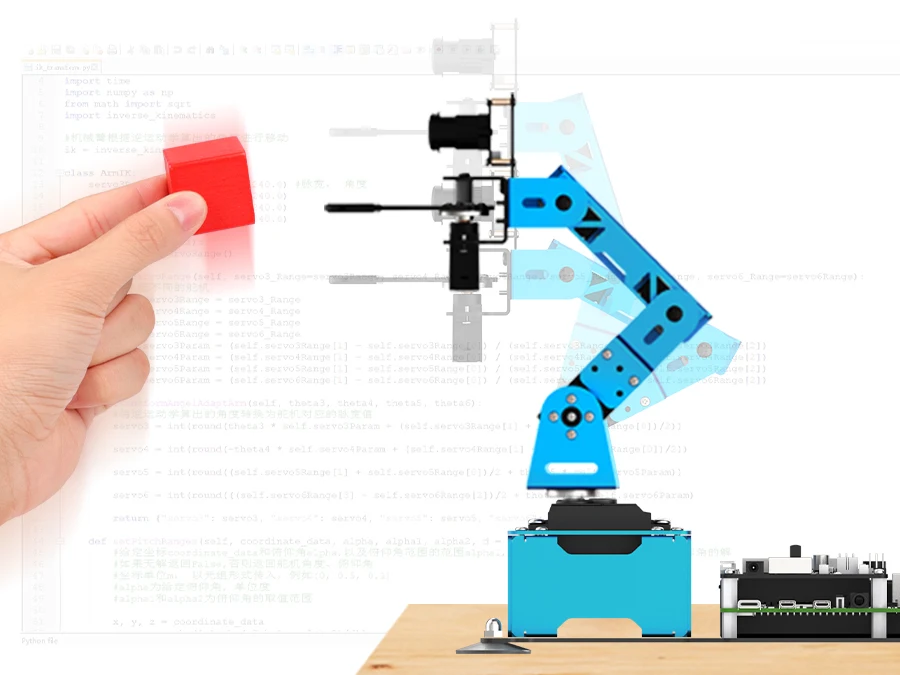

Inverse Kinematics

With inverse kinematics, ArmPi mini is very precise and agile in objects tracking and gripping.

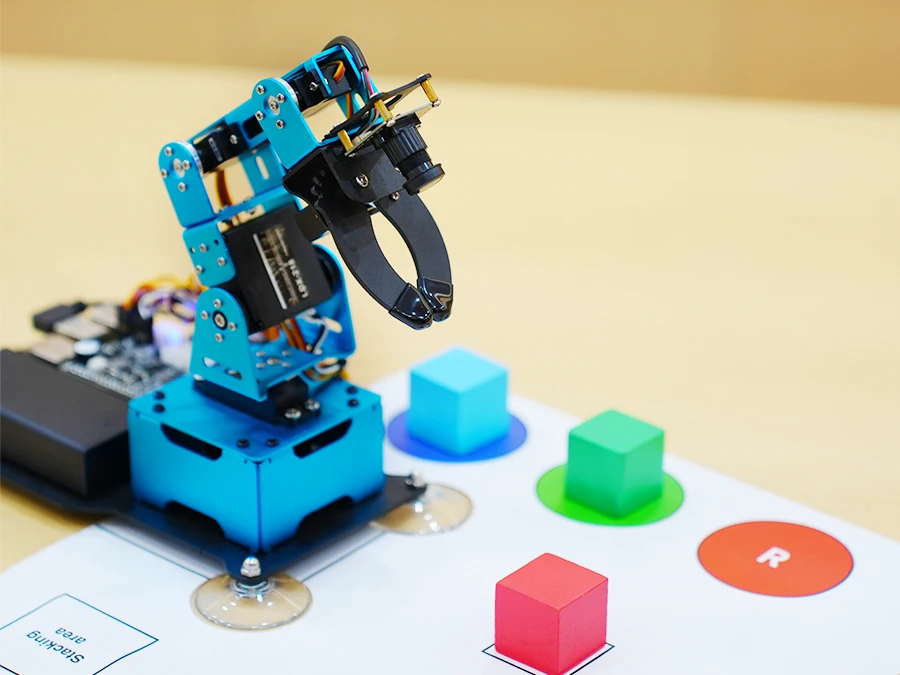

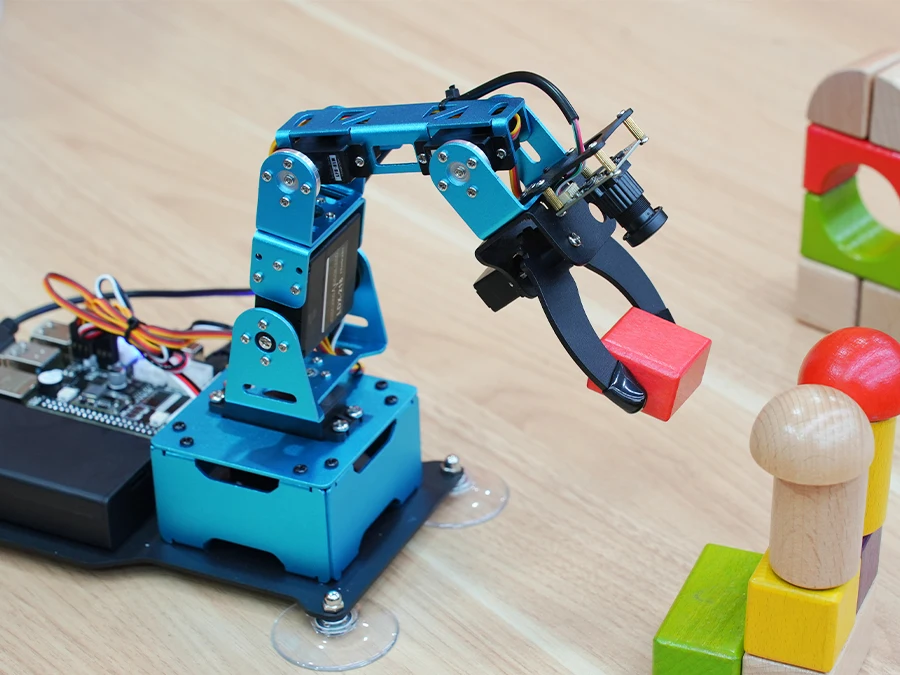

Color Sorting

By recognizing color of the target and getting its coordinate, ArmPi mini is able to carry out color recognition, pick and sort stuffs.

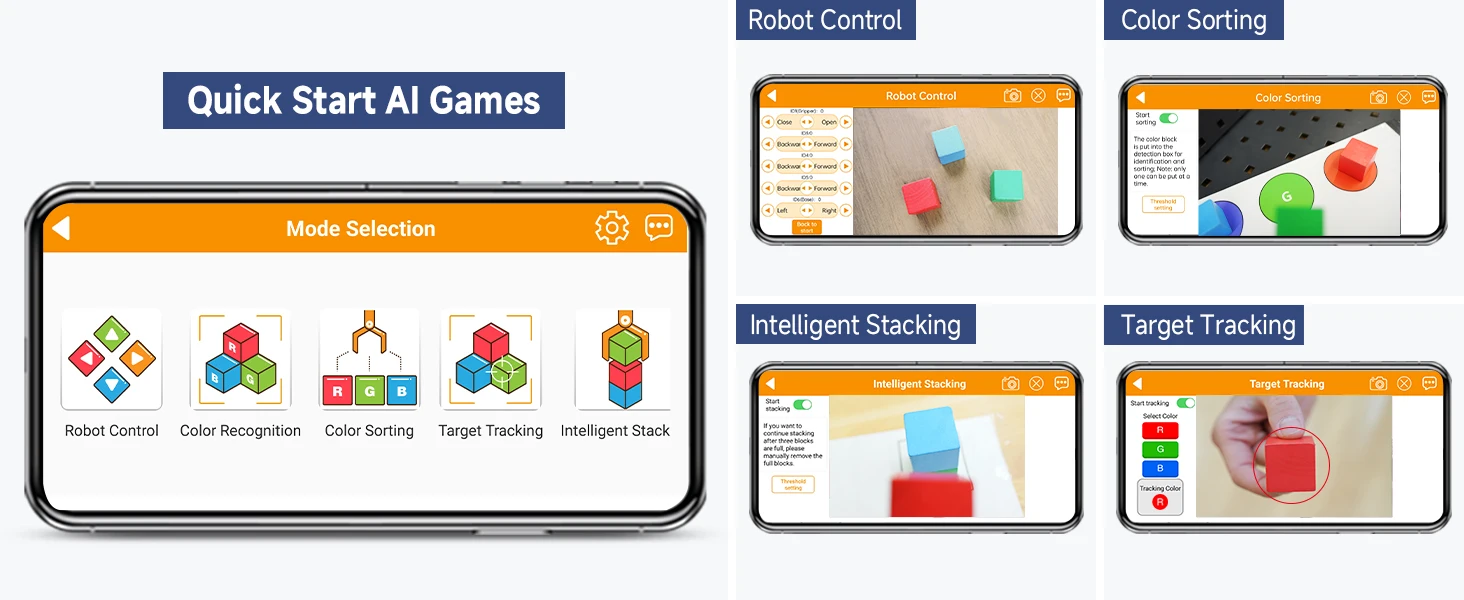

Unlimited Creativity

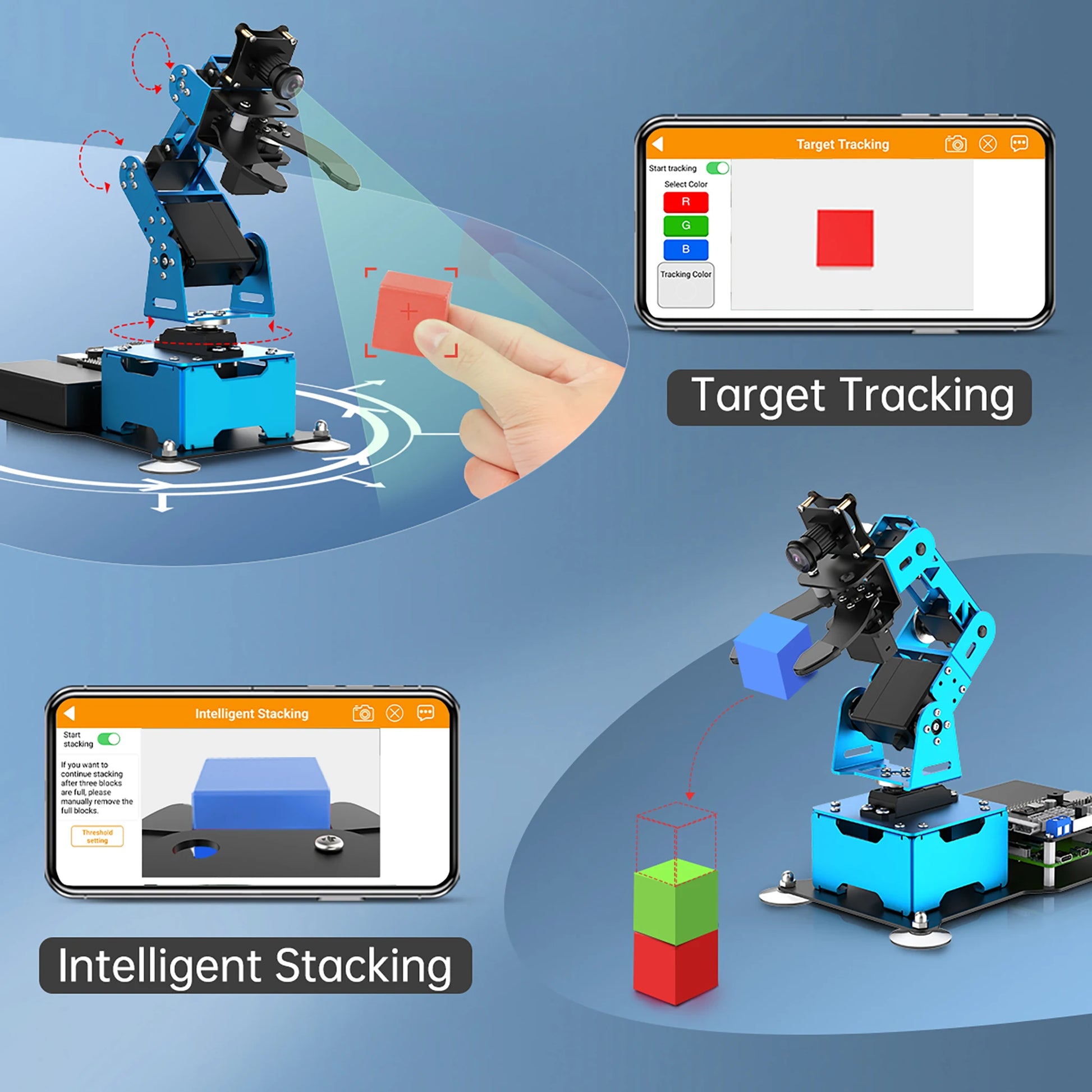

ArmPi mini supports a variety of creative gameplay, which can realize fun gameplay such as stacking blocks and clamping dolls.

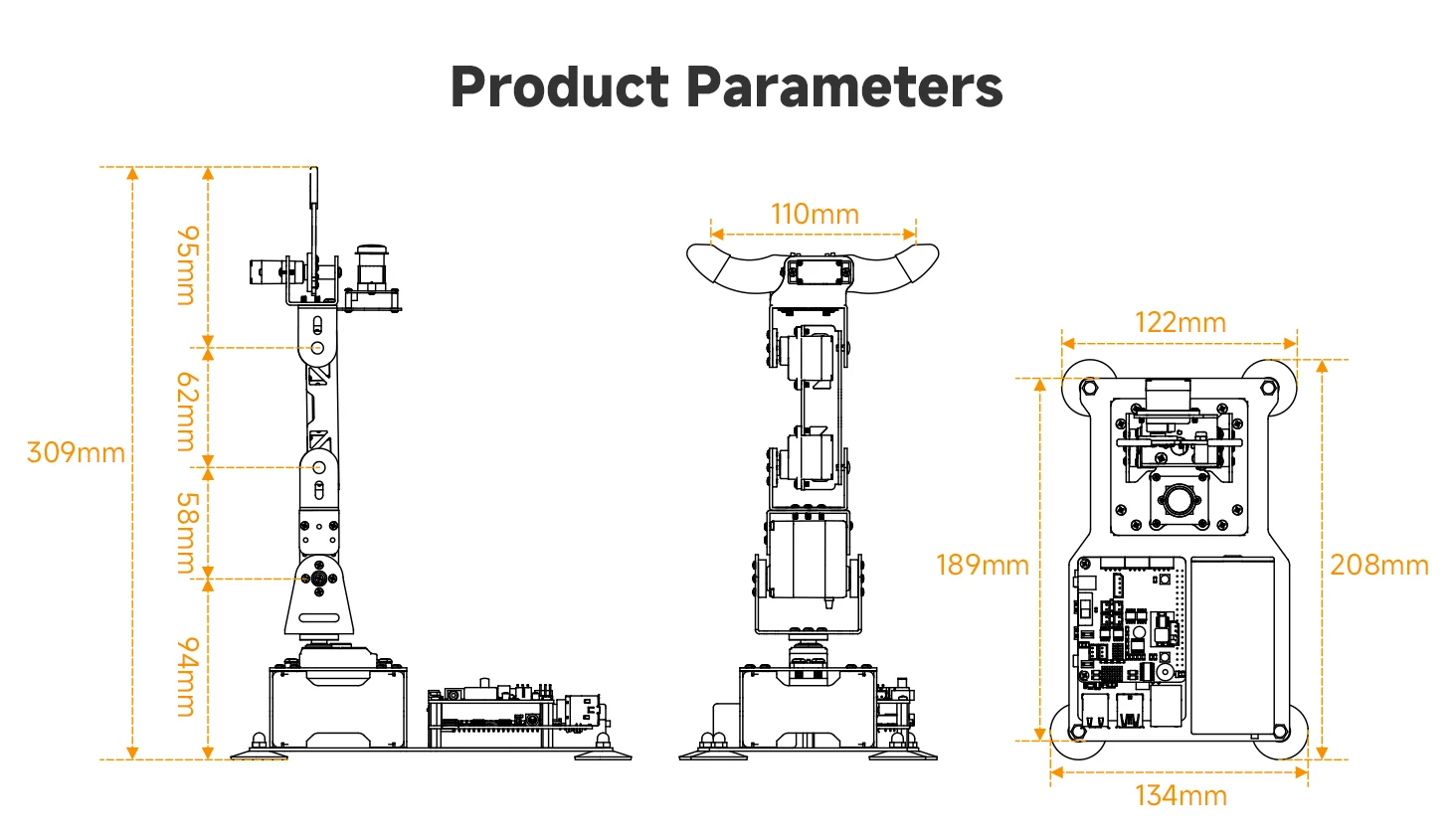

Size
208*134*309mm
Hardware
Raspberry Pi 4B/5 and Raspberry Pi 4B/5 expansion board
Weight
0.7kg
Software
iOS/Android App
Material
Metal bracket
Communication method
WiFi,Ethernet
Camera resolution
480P

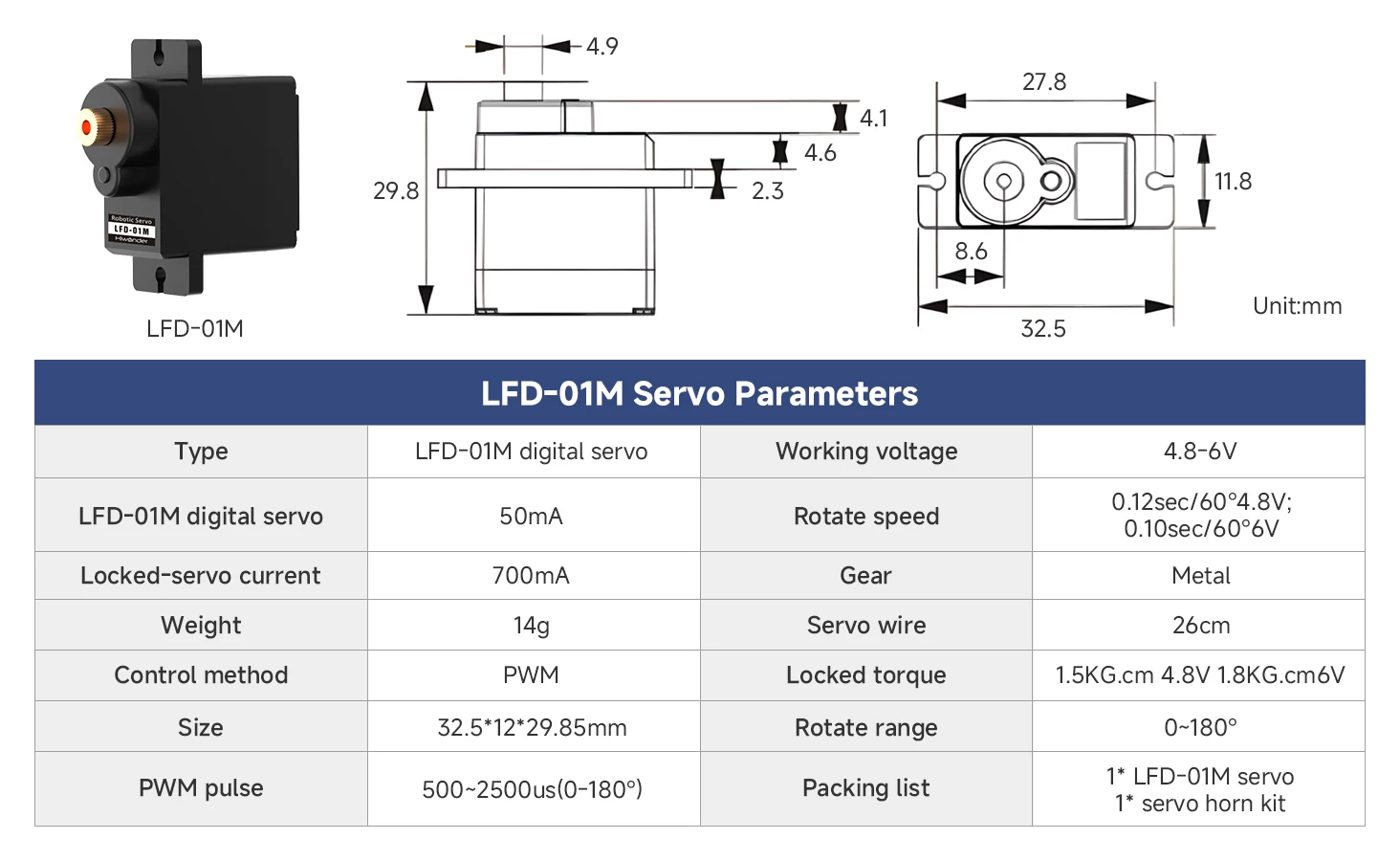

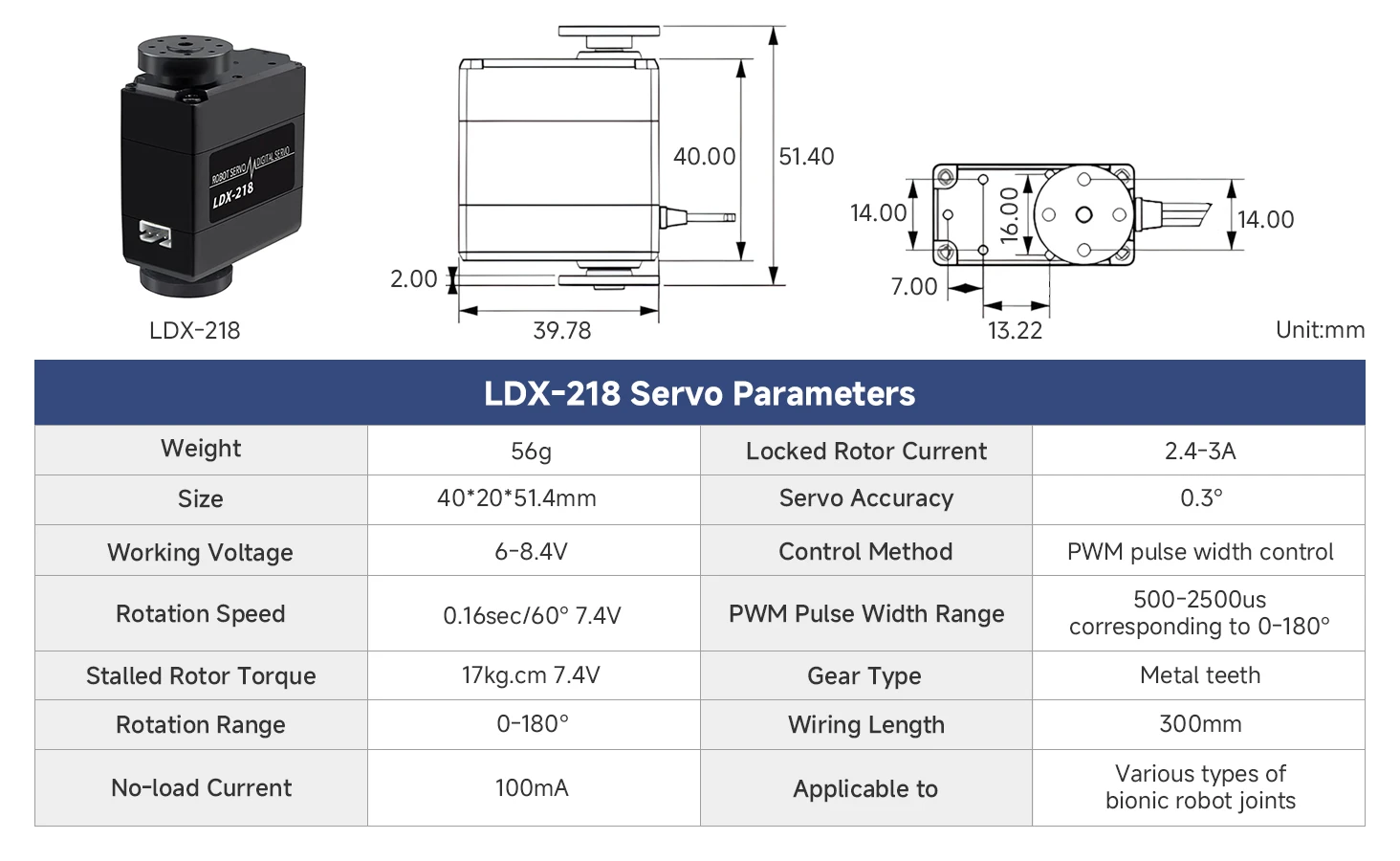

Servo
LDX-218/Ld-1501MG digital servo and LFD-01M micro servo
DOF of robotic arm
4DOF+Gripper

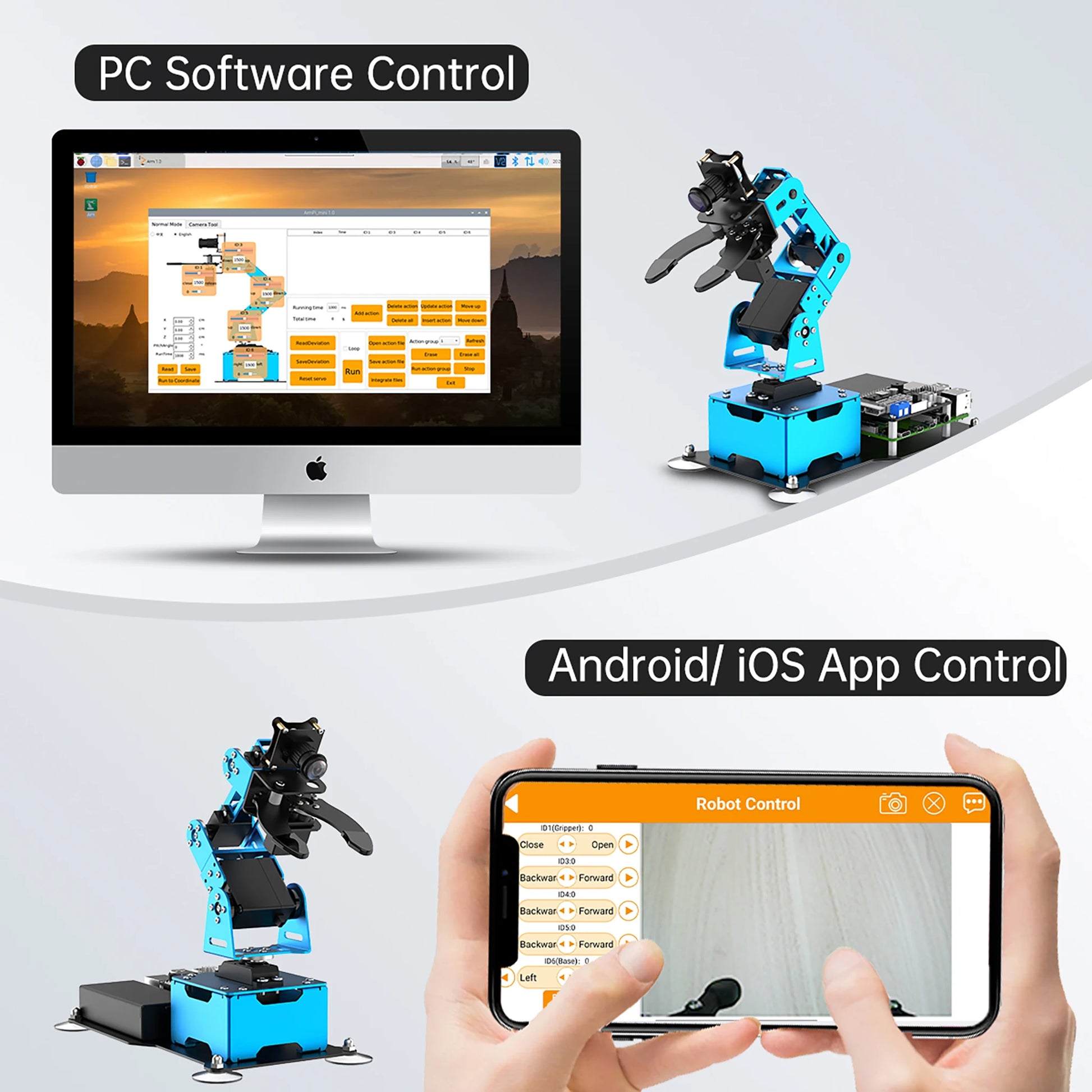

Control method
Computer/phone control
Power
2*18650 Lipo battery(1800mAh)
Package size
33*20*10cm
Continuous working time
About 60 min
Package weight
About 1100g
Delivery: DHL, FEDEX, UPS, TNT and so on.

Payment: T/T, Paypal, Western Union, L/C.

More service we can offer:
1. OEM/ODM manufacturing welcome(product, color box, package)
2. Quality Guarantee(most of products has passed CE/ROHS/KC)
3. Project Solution & Technical Support
4. Learning Tutorial Design
5. Quickly response
